QUICK START GUIDE
QUICK START GUIDE
BEFORE YOU INSTALL
This install guide was acknowledged by the customer on 5 June 2025
YOUR VEHICLE
  • Make: NISSAN
  • Model: 350Z
  • Year: 04/07-12/09
  • Variant: 3.5
  • Rego: Not provided
  • VIN: Not provided
  • VID: 14900
  • Date: 20 November 2024
TORQUE
Approximately 130 percent more torque capacity than OEM.
ACTUATION
Lighter actuation effort than OEM. Pedal release may be higher.
Fitment Kit Note: Suits OE & UniClutch Ultra Flywheel
Alternate US/CA part UCFK10295-U-01 uses Dowel Pos B1

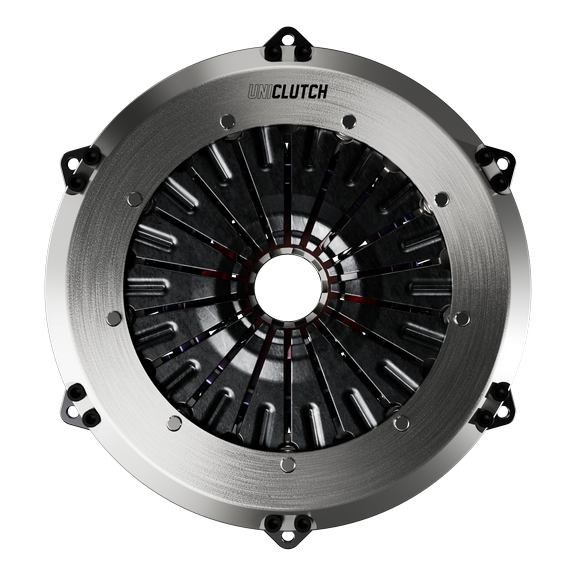

YOUR NEW
UNICLUTCH
Part No.
UC1024100
YOUR
FITMENT KIT
Part No.
UCFK10296-A-002 Dowel Pos G
or UCFK10295-U-01 uses Dowel Pos B1 (NAPA US/CA part)
or UCFK10296 Dowel Pos G

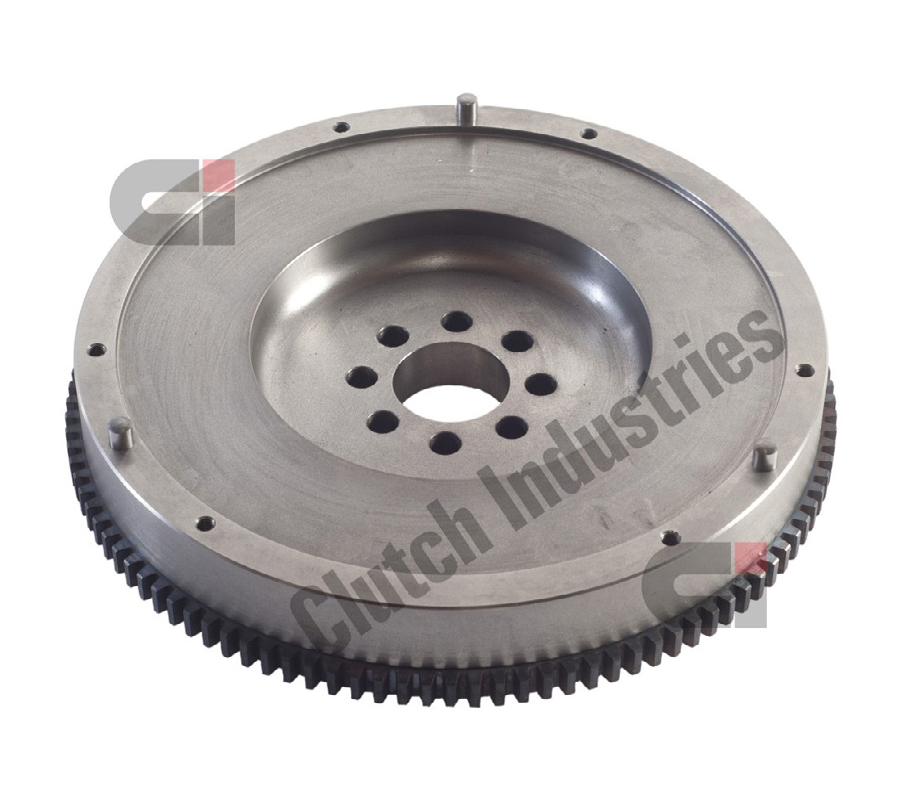

YOUR
FLYWHEEL
Part No. Reuse your existing OEM Spec Flywheel

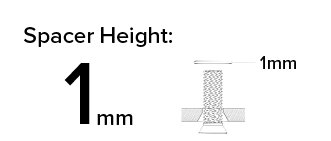

SPACING REQUIRED

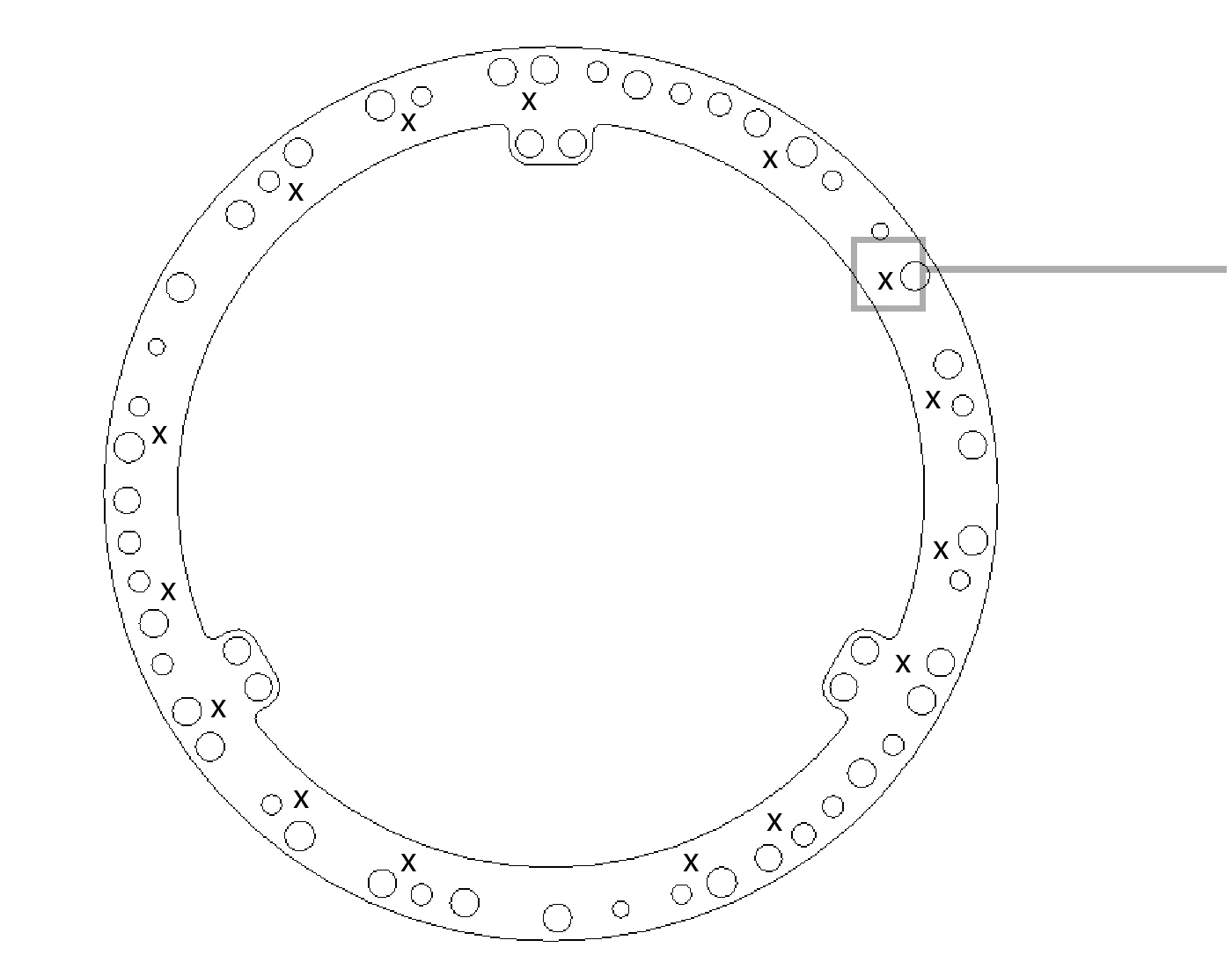

FLYWHEEL LOCATION
UCFK10296-A-002
Dowel Position:
G
RELEASE BEARING/CSC
GSB886-CSC
GSB886-CSC
SPIGOT BEARING/BUSH
RSB520
RSB520
OTHER
Replace any worn out bearings.
CI Concentric Slave Cylinder GSB886-CSC
CI Spigot Bearing/Bush RSB520
For more information, watch this video
VID: 14900     This Quick Start Guide was generated on 20 November 2024
