QUICK START GUIDE
QUICK START GUIDE
BEFORE YOU INSTALL
Each UniClutch is 100% tested and marked with a unique QR code. Scan the code on the base of the clutch to register it before jnstallation. This will unlock exclusive benefits and also give you access to the detailed performance specifications of your unit, including manufacturing data.
UniClutch is a sealed design which has been robotically assembled and 100% tested in our factory guaranteeing performance and quality. A unique QR code is lasered on the bottom of each unit to show manufacturing information and conformity, as well as performance and operation specifications. A UniClutch should NEVER be disassembled as this will alter the as tested characteristics and result in an immediate VOID of warranty. No service or support can be provided if a UniClutch has been tampered with or disassembled, even after use in a vehicle or upon suspected issues.
This custom installation guide outlines the specifications and installation procedures for the stated vehicle. By using this product, you acknowledge that any deviations from the standard vehicle configuration or failure to follow the installation instructions precisely may impact the validity of the installation and could void the product warranty.
This install guide was acknowledged by the customer on 9 June 2025
YOUR VEHICLE
  • Make: TOYOTA
  • Model: YARIS
  • Year: 02/20-on
  • Variant: 1.6 GR 4WD (GXPA16) AWD, Petrol, 1.6L, 3Cyl, G16E-GTS, 200kW
  • Rego: Not provided
  • VIN: Not provided
  • VID: 131584
  • Date: 19 March 2025
TORQUE
Approximately 150 percent more torque capacity than OEM.
ACTUATION
Similar actuation effort to OEM. Pedal release may be higher.
Fitment Kit Note: Suits OE & UniClutch Ultra Flywheel
Alternate US/CA part UCFK08274-U-01 uses Dowel Pos C

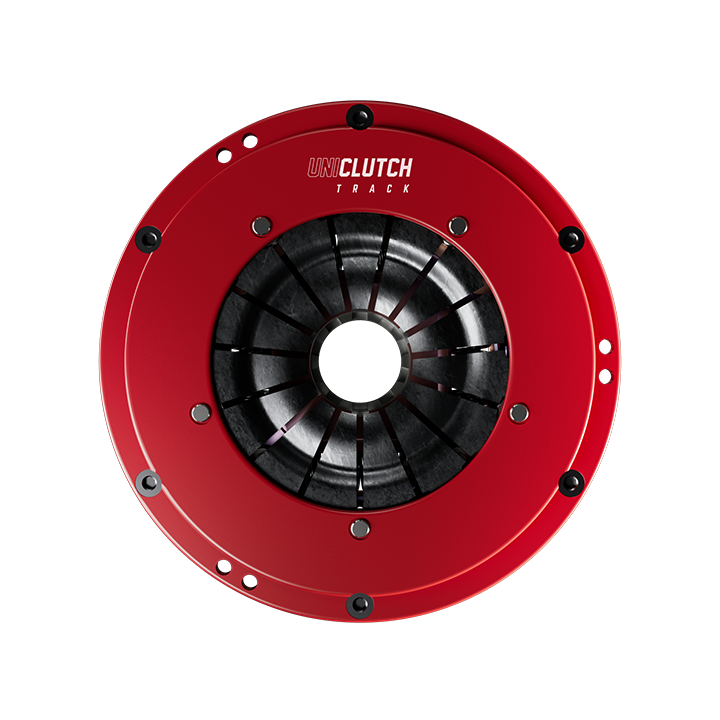

YOUR NEW
UNICLUTCH
Part No.
UC0821200
YOUR
FITMENT KIT
Part No.
UCFK08275-A-002 Dowel Pos E
or UCFK08274-U-01 uses Dowel Pos C (NAPA US/CA part)
or UCFK08275 Dowel Pos E
YOUR
FLYWHEEL
Part No. Reuse your existing OEM Spec Flywheel

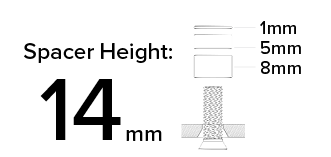

SPACING REQUIRED
FLYWHEEL LOCATION
UCFK08275-A-002
Dowel Position:
E
RELEASE BEARING/CSC
GSB968-CSC
GSB968-CSC
SPIGOT BEARING/BUSH
Use OEM style
Use OEM style
Unless stated in the Fitment Kit Notes above, UniClutch suits OEM service parts. The above Release Bearing or CSC and Spigot Bearing or Bush are references from Clutch Industries Australia. Equivalent OEM spec parts may be used.
OTHER
Replace any worn out bearings.
CI Concentric Slave Cylinder GSB968-CSC
CI Spigot Bearing/Bush (Not provided)
For more information, watch this video
VID: 131584     This Quick Start Guide was generated on 19 March 2025
